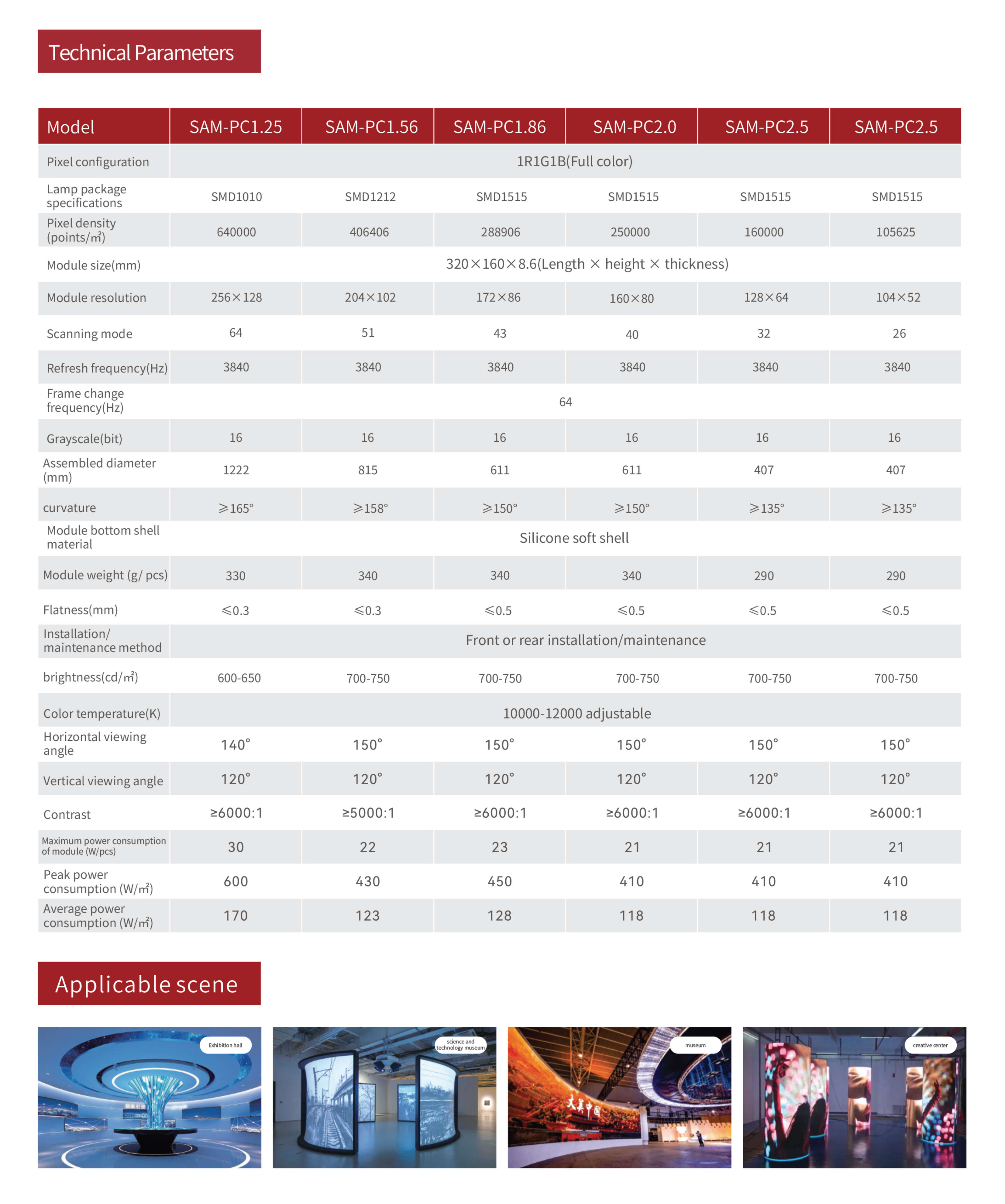

| Model | SAM-PC1.25 | SAM-PC1.56 | SAM-PC1.86 | SAM-PC2.0 | SAM-PC2.5 | SAM-PC2.5 |
| Pixel configuration | 1R1G1B(Full color) |
| Lamp package specifications | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| Pixel density(points/㎡) | 640000 | 406406 | 288906 | 250000 | 160000 | 105625 |
| Module size(mm) | 320x160x8.6(Length x height x thickness) |
| Module resolution | 256x128 | 204x102 | 172x86 | 160x80 | 128x64 | 104x52 |
| Scanning mode | 64 | 51 | 43 | 40 | 32 | 26 |
| Refresh frequency(Hz) | 3840 |
| Frame changefrequency(Hz) | 64 |
| Grayscale(bit) | 16 |
| Assembled diameter(mm) | 1222 | 815 | 611 | 611 | 407 | 407 |
| curvature | ≥165° | ≥158° | ≥150° | ≥150° | ≥135° | ≥135° |
| Module bottom shellmaterial | Silicone soft shell |
| Module weight (g/pcs) | 330 | 340 | 340 | 340 | 290 | 290 |
| Flatness(mm) | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Installation/maintenance method | Front or rear installation/maintenance |
| brightness(cd/㎡) | 600-650 | 700-750 | 700-750 | 700-750 | 700-750 | 700-750 |
| Color temperature(K) | 10000-12000 adjustable |
| Horizontal viewing angle | 140° |
| Vertical viewing angle | 120° |
| Contrast | ≥6000:1 | ≥5000:1 | ≥6000:1 | ≥6000:1 | ≥6000:1 | ≥6000:1 |
| Maximum power consumption of module (w/pcs) | 30 | 22 | 23 | 21 | 21 | 21 |
| Peak power consumption (W/㎡) | 600 | 430 | 450 | 410 | 410 | 410 |
| Average power consumption (W/㎡) | 170 | 123 | 128 | 118 | 118 | 118 |
