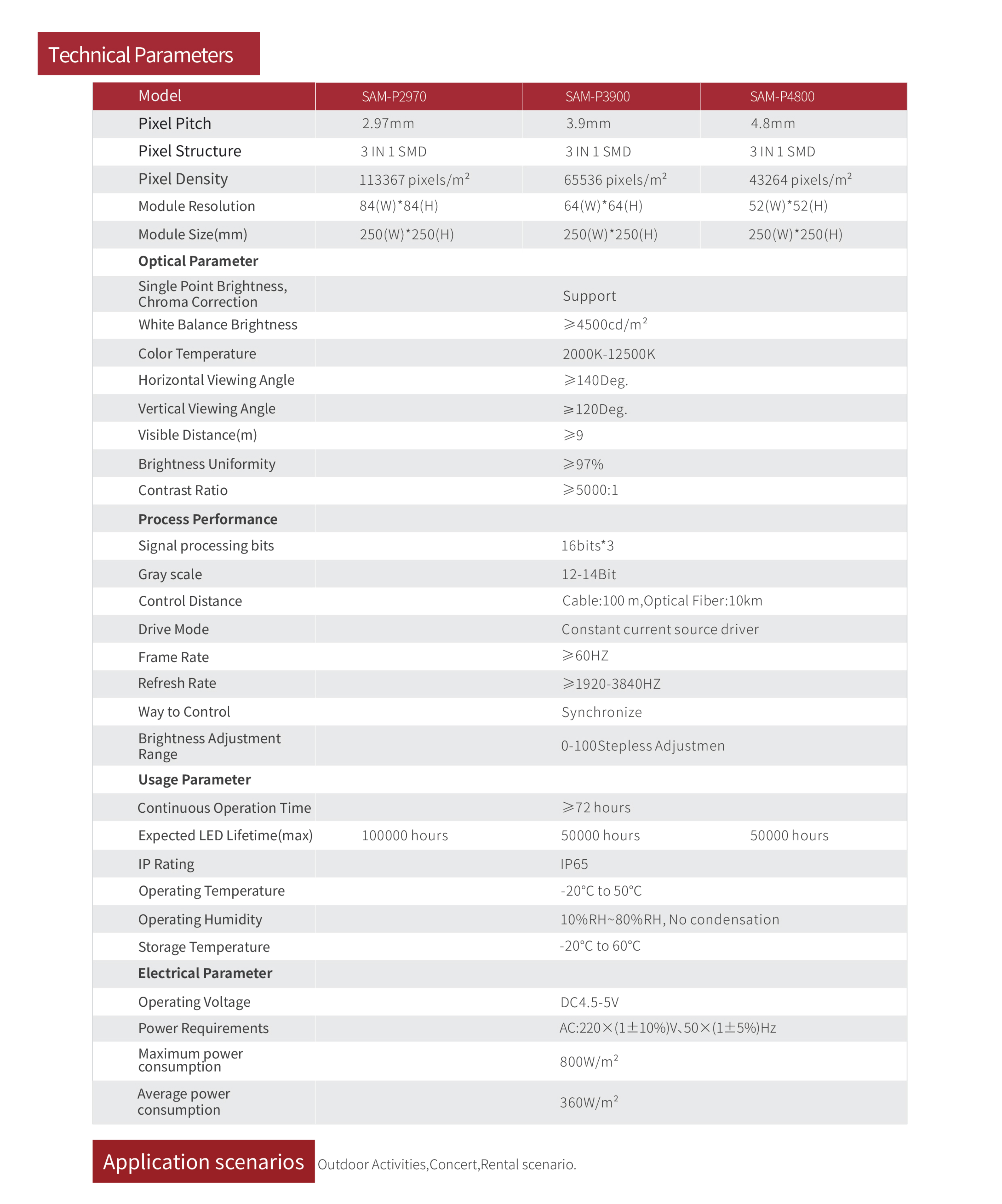

| Model | SAM-P2970 | SAM-P3900 | SAM-P4800 |
| Pixel Pitch | 2.97mm | 3.9mm | 4.8mm |
| Pixel Structure | 3 IN1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Pixel Density | 113367 pixels/㎡ | 65536 pixels/㎡ | 43264 pixels/㎡ |
| Module Resolution | 84(W)*84(H) | 64(W)*64(H) | 52(W)*52(H) |
| Module Size(mm) | 250(W)*250(H) | 250(W)*250(H) | 250(W)*250(H) |
| Single Point Brightness,Chroma Correction | Support
|
| White Balance Brightness | >4500cd/㎡ |
| Color Temperature | 2000K-12500K |
| Horizontal Viewing Angle | ≥140Deg. |
| Vertical Viewing Angle | ≥120Deg. |
| Visible Distance(m) | ≥9 |
| Brightness Uniformity | ≥97% |
| Contrast Ratio | ≥5000:1 |
| Signal processing bits | 16bits*3 |
| Gray scale | 12-14Bit |
| Control Distance | Cable:100 m,Optical Fiber:10km |
| Drive Mode | Constant current source driver |
| Frame Rate | ≥60HZ |
| Refresh Rate | ≥1920-3840Hz |
| Way to Control | Way to Control |
Brightness Adiustment Range | 0-100Stepless Adjustmen |
| Continuous Operation Time | >72 hours |
| Expected LED Lifetime(max) | 100000 hours | 50000 hours | 50000 hours |
| IP Rating | IP65 |
| OperatingTemperature | -20°C to 50°C |
| Operating Humidity | 10%RH~80%RH,No condensation |
| Storage Temperature | -20°C to 60°C |
| Operating Voltage | DC4.5-5V |
| Power Requirements | AC:220x(1±10%)V50x(1±5%)Hz |
| Maximum power consumption | 800W/㎡ |
| Average power consumption | 360W/㎡ |
